Specifications
Camera |
|
|
Image Sensor |
1 / 3.2 "CMOS |
|
Image Size |
1920 × 1080 |
|
Electronic Shutter |
1 / 25 s ~ 1 / 100000 s |
|
Iris Type |
Fixed Iris |
|
Min. Illumination |
0.012 lux@F1.2,AGC ON; 0 lux with IR 0.046 lux@F2.31,AGC ON; 0 lux with IR |
|
Lens |
2.8 mm @F2.0, horizontal field of view: 93.7° 3.6 mm @F2.0, horizontal field of view: 75.8° |
|
Lens Mount |
M12 |
|
Wide Dynamic Range |
Digital WDR |
|
BLC |
Yes |
|
HLC |
Yes |
|
Digital NR |
3D DNR |
|
Angle Adjustment |
Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360° |
Image |
|
|
Video Compression |
H.265 / H.264/MJPEG |
|
H.265 Compression Standard |
Main Profile@Leve4.1 High Tier |
|
Resolution |
1080P ( 1920 × 1080 ),720P ( 1280 × 720 ), D1, 480 × 240, CIF |
|
Main Stream |
60Hz : 1080P/720P(1~30fps); 50Hz : 1080P/720P(1~25fps) |
|
Sub Stream |
60Hz : D1/CIF/480x240 (1~30fps); 50HZ: D1/CIF/480x240 (1~25fps) |
|
Bit Rate |
64 Kbps ~ 6Mbps |
|
Bit Rate Type |
VBR/ CBR |
|
Image Settings |
ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic,
Sharpen,NR,etc. adjustable through client software or web
browser |
|
ROI |
Each ROI to be configured separately |
Interfaces |
|
|
Network |
RJ45 |
|
Audio |
No |
|
Storage |
No |
|
Hardware Reset |
No |
|
Video Output |
No |
Functions |
|
|
Remote Monitoring |
Web browsing, CMS remote control |
|
Interface Protocol |
ONVIF, GB-T/28181-2011 |
|
Storage |
Network remote storage |
|
PoE |
Yes |
|
Online Connection |
Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission |
|
Network Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, 802.1x,UPnP, HTTPs, HTTP, QoS |
|
Smart Alarm |
Motion detection |
|
General function |
Watermark, IP address filtering, video mask, heartbeat, illegal login lock |
|
IR Distance |
10~20m |
|
Ingress Protection |
IP67 |
|
Intelligent Analytics |
Object removal detection, abnormal video signal detection, intrusion detection and line crossing detection (optional) |
Others |
|
|
Power Supply |
DC12V / PoE |
|
Power Consumption |
< 5W |
|

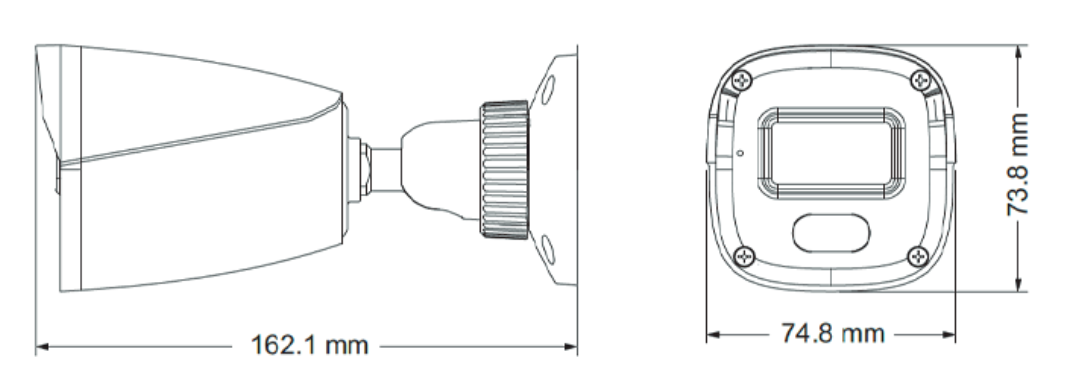

Dimensions (mm) |
162.1 × 74.8 × 73.8 |
|
Operating Environment |
-20 °C ~ 55°C(-4°F~131°F） Humidity: less than 95 %(non-condensing) |
|
Weight ( net ) |
Approx. 0.24KG |
|
Installation |
Ceiling mounting; Wall mounting |
